Benchmarking¶
We have created a framework for testing the performance of Geneset Network analysis: it allows the experimenter to create simulated networks specifying many parameters. The model we use is the Stochastic Block Model and Degree Model that provides a way to create the network and identify clusters into it.
Stochastic Block Model¶

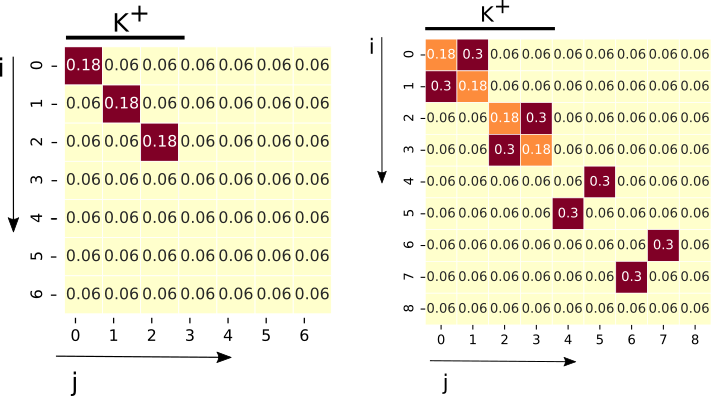

We provide both functions to generate stochastic block model simualated data like below. On the left is the model used for GNT benchmarking and on the right the one for GNA benchmarking.
For a quick primer on SBM, you can check the page below:
For each simulation we return both the whole network and a gmt file with the blocks.
GNT Benchmarking¶
usage: pygna generate-gnt-sbm [-h] [-N N] [-b BLOCK_SIZE] [--d D]
[-f FOLD_CHANGE] [--descriptor DESCRIPTOR]
output-tsv output-gmt
This function generates 3 blocks with d*fold_change probability
and other 3 blocks with d probability.
Make sure that 6*cluster_size < N
positional arguments:
output-tsv output network filename
output-gmt output geneset filename, this contains only the blocks
optional arguments:
-h, --help show this help message and exit
-N N, --N N number of nodes in the network (default: 1000)
-b BLOCK_SIZE, --block-size BLOCK_SIZE
size of the first 6 blocks (default: 50)
--d D baseline probability of connection, p0 in the paper
(default: 0.06)
-f FOLD_CHANGE, --fold-change FOLD_CHANGE
positive within-block scaling factor for the
probability of connection, Mii = fold_change * d
(alpha parameter in the paper) (default: 2.0)
--descriptor DESCRIPTOR
descriptor for the gmt file (default: 'mixed_sbm')
GNA Benchmarking¶
usage: pygna generate-gna-sbm [-h] [--output-gmt2 OUTPUT_GMT2] [-N N]
[-b BLOCK_SIZE] [--d D] [--fc-cis FC_CIS]
[--fc-trans FC_TRANS] [-p PI]
[--descriptor DESCRIPTOR] [-s SBM_MATRIX_FIGURE]
output-tsv output-gmt
This function generates benchmark network and geneset to test
the crosstalk between two blocks.
This function generates 4 blocks with d*fold change probability
and other 4 blocks with d probability.
The crosstalk is set both between the the first 4 blocks and the others.
Make sure that 8*cluster_size < N
positional arguments:
output-tsv output_network
output-gmt output geneset filename, this contains only the blocks
optional arguments:
-h, --help show this help message and exit
--output-gmt2 OUTPUT_GMT2
mixture output geneset filename, this contains the
mixture blocks (default: -)
-N N, --N N number of nodes in the network (default: 1000)
-b BLOCK_SIZE, --block-size BLOCK_SIZE
size of the first 8 blocks (default: 50)
--d D baseline probability of connection, p0 in the paper
(default: 0.06)
--fc-cis FC_CIS positive within-block scaling factor for the
probability of connection, Mii = fc_cis * d (alpha
parameter in the paper) (default: 2.0)
--fc-trans FC_TRANS positive between-block scaling factor for the
probability of connection, (beta parameter in the
paper) (default: 0.5)
-p PI, --pi PI percentage of block-i nodes for the genesets made of
block-i and block-j. Use symmetrical values (5,95),use
string comma separated (default:
'4,6,10,12,88,90,94,96')
--descriptor DESCRIPTOR
'crosstalk_sbm'
-s SBM_MATRIX_FIGURE, --sbm-matrix-figure SBM_MATRIX_FIGURE
shows the blockmodel matrix (default: -)
High Degree Nodes simulations¶
Generate the network and geneset file¶
The high degree nodes (HDN) model generates networks with a controllable number of hubs, HDNs, whose probability of connection with another node is higher than the baseline probability assigned to any other node in the network.
usage: pygna generate-hdn-network [-h] [--n-nodes N_NODES]
[--network-prob NETWORK_PROB]
[--hdn-probability HDN_PROBABILITY]
[--hdn-percentage HDN_PERCENTAGE]
[--number-of-simulations NUMBER_OF_SIMULATIONS]
output-folder prefix
This function generates a simulated network using the VIP model
positional arguments:
output-folder the output folder path
prefix the prefix of the file to be saved
optional arguments:
-h, --help show this help message and exit
--n-nodes N_NODES the number of nodes in the network (default: 1000)
--network-prob NETWORK_PROB
probability of connection in the network (default:
0.005)
--hdn-probability HDN_PROBABILITY
probability of connection of the HDNs (default: 0.3)
--hdn-percentage HDN_PERCENTAGE
percentage of HDNs (default: 0.05)
--number-of-simulations NUMBER_OF_SIMULATIONS
Add genesets¶
Given the generated network and node list of HDNs, we can then generate novel genesets made of mixtures of the two.
We show the idea of how they are generated below. First is the original network with a number of HDNs, then the partial, extended, and branching genesets.
Add extended genesets¶
usage: pygna hdn-add-extended [-h] [--hdn-set HDN_SET] [-g GENERAL_SET]
[--reps REPS] [-p PERCENTAGE_EXTENDED_VIPS]
[--ratio-others RATIO_OTHERS]
[-o OUTPUT_GENESET_FILE]
input-geneset-file
Creates new genesets from the vip list, number of genesets and portion of genes
can be specified by input. The final new geneset is going to be formed by:
percentage ev * HDN_total + ratio* percentage ev*vips total.
positional arguments:
input-geneset-file input geneset containing the sets to be merged
optional arguments:
-h, --help show this help message and exit
--hdn-set HDN_SET setname of the HDNs in the geneset (default:
'cluster_1')
-g GENERAL_SET, --general-set GENERAL_SET
other setname in the geneset (default: 'cluster_0')
--reps REPS number of new genesets made of part of HDNs (default:
3)
-p PERCENTAGE_EXTENDED_VIPS, --percentage-extended-vips PERCENTAGE_EXTENDED_VIPS
percentage of HDNs in the new genesett (default:
'[0.2]')
--ratio-others RATIO_OTHERS
ratio of genes to add to HDNs (default: '[2,2.5,3,4]')
-o OUTPUT_GENESET_FILE, --output-geneset-file OUTPUT_GENESET_FILE
if no output gmt filename is passed, the data is added
to the input file (default: -)
Add partial genesets¶
usage: pygna hdn-add-partial [-h] [--hdn-set HDN_SET] [-g GENERAL_SET]
[-r REPS] [-p PERCENTAGE_PARTIAL_VIPS]
[-o OUTPUT_GENESET_FILE]
input-geneset-file
Creates new genesets from the vip list, number of genesets and portion of
genes can be specified by input.
positional arguments:
input-geneset-file input geneset containing the sets to be merged
optional arguments:
-h, --help show this help message and exit
--hdn-set HDN_SET setname of the HDNs in the geneset (default:
'cluster_1')
-g GENERAL_SET, --general-set GENERAL_SET
other setname in the geneset (default: 'cluster_0')
-r REPS, --reps REPS number of new genesets made of part of vips (default:
3)
-p PERCENTAGE_PARTIAL_VIPS, --percentage-partial-vips PERCENTAGE_PARTIAL_VIPS
percentage of HDNs in the new geneset (default:
'0.1,0.2,0.5')
-o OUTPUT_GENESET_FILE, --output-geneset-file OUTPUT_GENESET_FILE
if no output gmt filename is passed, the data is added
to the input file (default: -)
Add branching genesets¶
usage: pygna hdn-add-branching [-h] [--hdn-set HDN_SET] [-g GENERAL_SET]
[--number-of-hdns NUMBER_OF_HDNS]
[--number-of-reps NUMBER_OF_REPS]
[--output-geneset-file OUTPUT_GENESET_FILE]
[--output-graph-file OUTPUT_GRAPH_FILE]
input-geneset-file network-file
Creates new genesets from the vip list, new genesets are created adding 1 step
nodes to vips. The new genes are created as branches.
positional arguments:
input-geneset-file input geneset containing the sets to be merged
network-file network filename
optional arguments:
-h, --help show this help message and exit
--hdn-set HDN_SET setname of the HDNs in the geneset (default:
'cluster_1')
-g GENERAL_SET, --general-set GENERAL_SET
other setname in the geneset (default: 'cluster_0')
--number-of-hdns NUMBER_OF_HDNS
number of seed HDNs to start adding nodes (default: 3)
--number-of-reps NUMBER_OF_REPS
number of new genesets created for each condition
(default: 3)
--output-geneset-file OUTPUT_GENESET_FILE
if no output gmt filename is passed, the data is added
to the input file (default: -)
--output-graph-file OUTPUT_GRAPH_FILE
if graphml file is passed the network with labels is
written (default: -)
General model (old)¶
This function is still working, however now networkx provides a function to generate SBM networks. We will then change this function to use directly networkx for the generation.
All the parameters can be specified in a yaml file that is passed as input. As output, we obtain a file with the network and a .gmt file where the nodes have been grouped by the respective cluster they are in.
Example yaml¶
BlockModel :
n_nodes: 100
matrix: [[0.8,0.1,0.1],[0.1,0.8,0.1],[0.1,0.1,0.8]]
nodes: ""
nodes_in_cluster: None
Simulations:
n_simulated: 1
output_folder: "/home/viola/Desktop/geneset-network-analysis/processed_data/simulated_data/"
suffix: attempt1
The Simulations parameters are used to specify the number and name of the output:
n_simulated
we can specify the number of networks we want to generate with the same settingsoutput_folder
specifies the folder where the output files are going to be savedsuffix
is the suffix used for the output.
For each simulated datasets there are two output files:
- suffix_network_$simulation.tsv : the network file
- suffix_genes_$simulation.gmt : the gene list grouped by cluster
The BlockModel parameters are those used to generate the SBM:
n_nodes
number of nodes of the networkmatrix
SBM matrixnodes: ""
names of the nodes, if not specified N$numbernodes_in_cluster: None
: Number of nodes thatwe want to assign to each cluster
Example simulated dataset generation and Analysis¶
Generation of the network and genesets
$ pygna generate-simulated-network ../simulationBM.yaml
